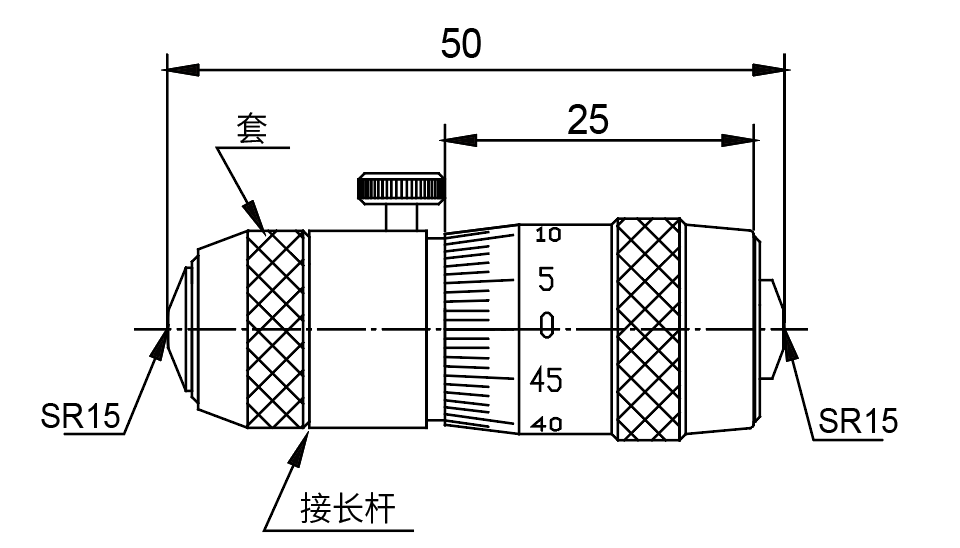

内径千分尺
组合接杆测量范围大。
配有校对卡规，校对零位。
钢管测杆外圆尺寸Φ15.5mm。
精度：(3+n+L/50)μm (n=接杆数，L=最大测 量长度(mm))。
分辨力：0.01mm。
可选硬质合金测量面：302-XX-070。
| 货号 | 测量范围 | 接杆 |
|---|---|---|
| 301-10-060 | 50-63mm | 微分头 |
| 301-11-060 | 50-100mm | 13mm,25mm |
| 301-12-060 | 50-150mm | 13mm,25mm,50mm |
| 301-13-060 | 50-300mm | 13mm,25mm,50mm(2件),100mm |
| 301-14-060 | 50-500mm | 13mm,25mm,50mm(2件),100mm,200mm |
| 301-21-060 | 50-900mm | 13mm,25mm,50mm,100mm,150mm,200mm,300mm |
| 301-15-060 | 50-1000mm | 13mm,25mm,50mm,100mm(2件),150mm,200mm,300mm |
| 301-16-060 | 50-1500mm | 13mm,25mm,50mm,100mm(2件),150mm,200mm(2件),300mm(2件) |
| 301-02-060 | 50-75mm | 13mm |
| 301-03-060 | 50-175mm | 13mm,25mm(2件),50mm |
| 301-04-060 | 50-250mm | 13mm,25mm,50mm,100mm |
| 301-05-060 | 50-600mm | 13mm,25mm,50mm,100mm,150mm,200mm |
